Check out the 'How-To' use video and the following steps:
- Check you have completed these steps:
- Install Quick Connect CO2 Cylinder
- Fill with cold water and install the water tank
- Install the flavor bottle
Please note – The sodastream FOUNTAIN™ Sparkling Drink Make will turn to a ‘sleep mode’ after 10 minutes of being inactive. To turn it on, press any button and proceed with the following steps:
- Select a drink size by pressing the Drink Size Button repeatedly until the light indicator lands on your desired selection.
Select Drink Size*:
S – 8oz (236ml)
M – 16oz (473ml)
L – 24oz (710ml)
Please Note:- "S” is the default size until you change it, and then the machine will remember your choice.
The “M” and “L” sizes are being made in cycles, which means the machine will pull 8oz of water from water tank, fizz them, dispense to the glass, and then will pull another 8oz from the water tank (for “M” size), fizz them and dispense them into the glass (for "L" size, it's 3 cycles: 8+8+8 oz.). -
We recommend testing first with "S" size and see how it fits the glass you are using (for most glasses 8oz + ice is enough).
* The listed dosages are intended as targets and may vary depending on differences between individual units. Based on recommended serving size = dosing stage 4 (classic soda dose).
Refer to the table below with recommendations:
- "S” is the default size until you change it, and then the machine will remember your choice.

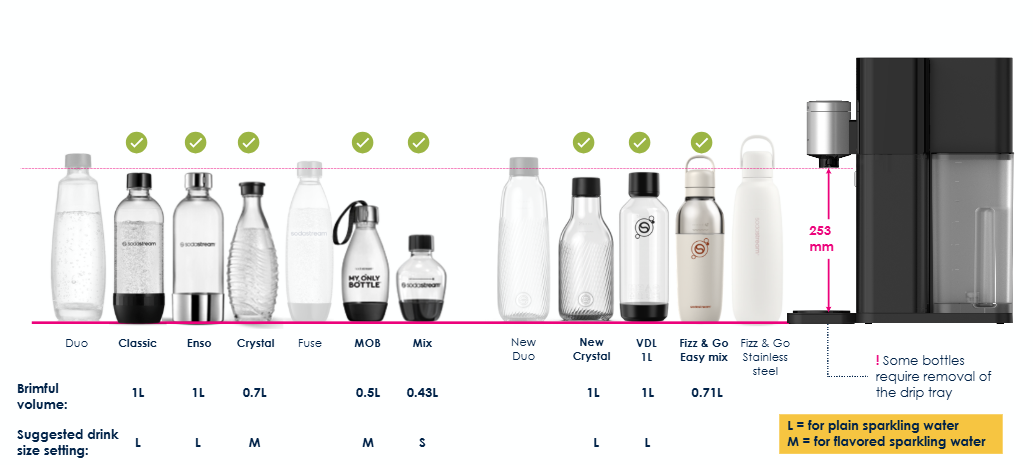

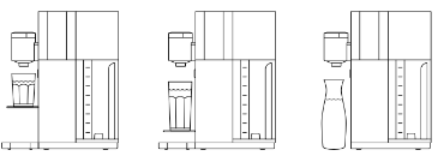

- Place an appropriately sized vessel below the Dispense Nozzle and adjust the cap base accordingly if needed. For taller vessels, like a bottle, the Drip Tray may need to be removed to fit under the Dispense Nozzle.
- Select a Fizz level by pressing the Carbonation Level Button repeatedly until the light indicator lands on your desired selection. Refer to the chart below.
Select Fizz Level:
– Still (no fizz)
• Light
•• Medium
••• Strong (Recommended Serving)
- Select a Flavor level by turning the Flavor Dial to your desired selection. Refer to the chart below.
Select Flavor Level:
0 No Flavor - Plain water
1 Hint - 25%
2 Light - 50%
3 Medium - 75%
4 Classic Soda - 100% (Recommended Serving)
B Boost / Prime – 25% additional syrup
- The Activation Button will turn static White to indicate the machine is ready - Start the drink making process* by pressing the Activation Button once. The Status LED Ring will turn on while the drink is dispensing.
Once the drink is ready, the LED Ring will blink 3 times and remain illuminated.
Press within 5 seconds → Pause/Resume
- If you press the Activation Button within 5 seconds of the process running, the machine pauses.
- The Light ring blinks White while paused.
- Press the Activation Button again to resume the process.
Press after 5 seconds → Cancel + Reset required
- If you press the Activation Button after 5 seconds have passed, the machine cancels the drink-making process and enters a reset required state.
- The Light ring blinks Orange to indicate this state.
- To reset:
- Place an empty glass under the Dispense Nozzle.
- Press the Activation Button to drain the remaining water from the system.
- Dispose of the drained water.
- Start a new drink.
- Use the “Boost” preset to add a touch of flavor to a drink you have already made or add a splash of a different flavor.
- Turn the Flavor Dial to the Boost setting. The Light Status will illuminate Purple.
- Place your drink below the Dispense Nozzle.
-
Press the Activation Button, for a boost of flavor!
Flavor Dosing Chart*
| S | M | L | ||||
| Flavor Dial Setting | oz | ml | oz | ml | oz | ml |
| 4 | 0.4 | 12 | 0.8 | 24 | 1.2 | 35 |
| 3 | 0.3 | 9 | 0.6 | 18 | 0.9 | 27 |
| 2 | 0.2 | 6 | 0.4 | 12 | 0.6 | 18 |
| 1 | 0.1 | 3 | 0.2 | 6 | 0.3 | 9 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| B (Boost) | 0.1 | 3 | 0.2 | 6 | 0.3 | 9 |
* The listed dosages are intended as targets and may vary depending on differences between individual units. It is not recommended to add any flavor or combination of flavors exceeding the total of level 4 on the Flavor Dial Setting
